Turing Machine Assembly Instructions

Thank you for purchasing the Turing Machine! Please follow the BOM and these instructions. Don’t populate from the PCB silkscreen or these instruction pictures alone. Our components may look different from the pictures.

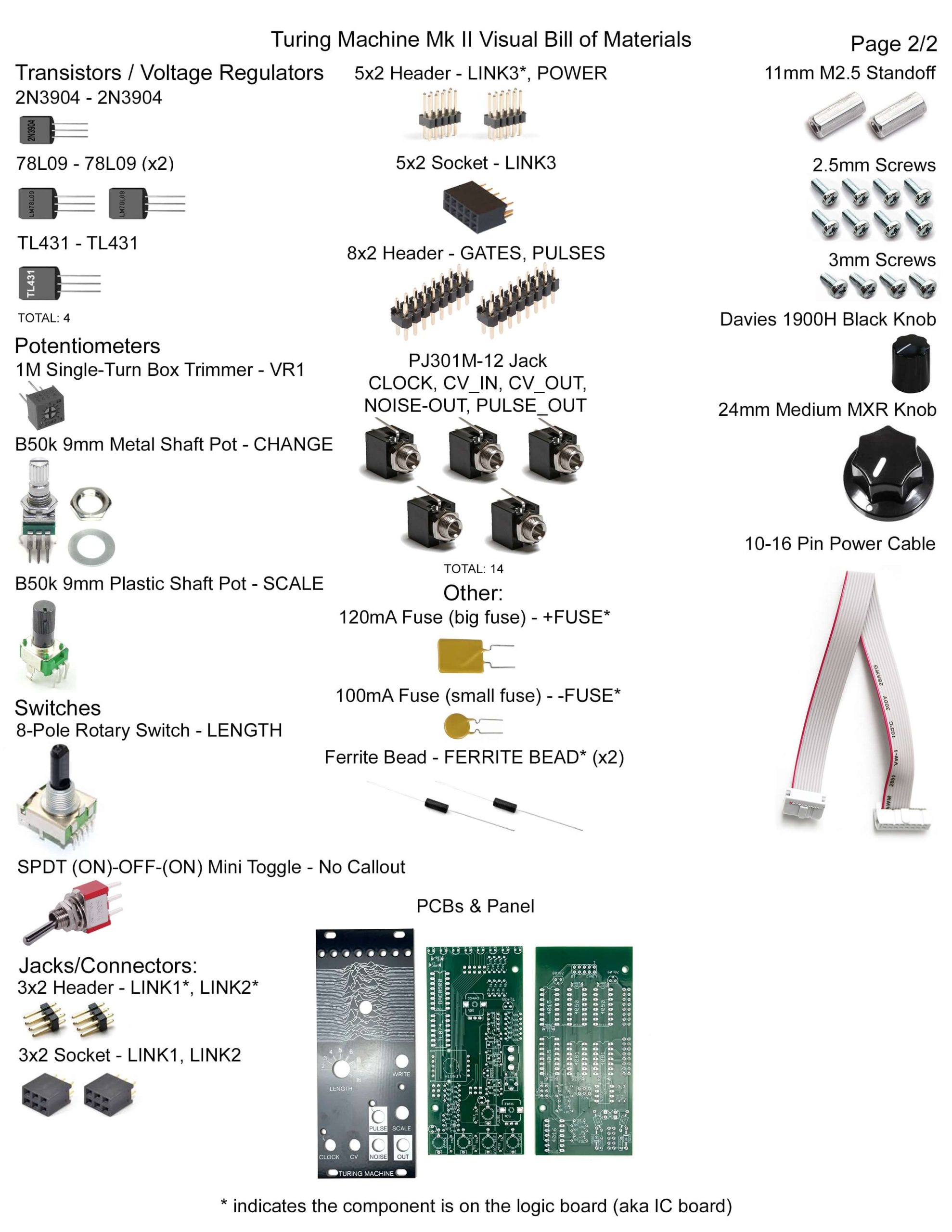

Here’s a link to a bill of materials with part numbers.

The Turing Machine has two PCBs:

Turing Machine 2 PCBs
Turing Machine PCBs

IC Board Resistors

Start with the resistors on the IC board. It helps to pre-bend the resistors before placing them into the PCB. Once have done this, carefully turn the project over (using a piece of cardboard or other PCB can help) and solder the resistors in place. Clip the excess leads.

Turing Machine IC Board Resistors
Turing Machine IC Board Resistors

Ferrite Beads & Diodes

Diodes are polarized. Make sure you align the grey line on the diodes with the line on the PCB silkscreen. The ferrite beads can be placed either way. Again, carefully turn the project over to solder and then clip excess leads.

Turing Machine Ferrite Beads
Turing Machine Ferrite Beads

IC Sockets, Caps, and Voltage Regulators

First place the IC sockets in the PCB by aligning the notch on the PCB with notch on the PCB silkscreen. Very carefully (use cardboard or another PCB) turn the project over to solder in place. Then place the ceramic caps (non-polarized) into the PCB as shown below. Next place the two 78L09 voltage regulators into the PCB by aligning the flat edge of the regulator with the flat edge on the PCB silk screen. Turn over to solder and clip. Lastly, place the electrolytic caps in the PCB by placing the shorter of the two leads into the circular pad that has a “-” next to it. Turn over to solder and clip.

Turing Machine IC Sockets
Turing Machine IC Sockets

IC Board Sockets & Headers

Place the sockets into the PCB as shown below by aligning the notch on the socket with the notch on the PCB silkscreen and turn over to solder in place.

Turing Machine Sockets
Turing Machine Sockets

Turn the project over and place the headers in. Carefully turn over to solder in place.

Turing Machine IC Board Headers
Turing Machine IC Board Headers

ICs and Standoffs

Populate the ICs as shown below by aligning the notch on the ICs with the notch on the IC sockets. Next, screw in the two standoffs with the provided screws.

Turing Machine ICs and standoffs
Turing Machine ICs and standoffs

Control Board Resistors & Diode

Populate the resistors then turn over to solder in place then clip excess leads. You can now populate the diode by aligning the strip on the diode with the stripe on the PCB silkscreen. Solder and clip.

Turing Machine Control Board Resistors
Turing Machine Control Board Resistors

Sockets, Caps, and Transistors

Place the sockets into the PCB as shown below by aligning the notch on the socket with the notch on the PCB silkscreen and turn over to solder in place. Then place the ceramic caps (non-polarized) into the PCB as shown below. Next place the two transistors into the PCB by aligning the flat edge of the regulator with the flat edge on the PCB silk screen. Turn over to solder and clip.

Turing Machine Sockets and Caps
Turing Machine Sockets and Caps

Control Board Headers

Place the headers into the PCB, carefully turn over to solder in place.

Turing Machine Control Board Headers
Turing Machine Control Board Headers

Trimmer Resistor

Place the trimmer resistor in the PCB, turn over and solder in place.

f

Panel Prep, LEDs & other Parts

Take some masking tape and cover up the LED holes as shown below

Turing Machine Panel Prep
Turing Machine Panel Prep

DON’T SOLDER YET! Now place the LEDs into the PCB, placing the longer lead into the pad that has the “+” next to it. Loosely do this as well for the switches, jacks and pots.

Turing Machine Parts 2
Turing Machine Parts 2

Now take the panel (with tape over the holes) carefully place it over the control board. Finger-tighten the nuts then turn the project over.

Turing Machine Parts
Turing Machine Parts

Let the LEDs hit the tape as shown below. You can now solder in place the LEDs, jacks, switches and potentiometers. Clip excess LED leads.

Turing Machine Extras
Turing Machine Extras

Board to Board Connection

Remove the panel and now connect the two boards together carefully. Align the sockets and headers.

Turing Machine Board to Board Connection 1
Turing Machine Board to Board Connection 1

Once connected, screw down the Control Board to the IC board with the provided screws.

Turing Machine Standoffs
Turing Machine Standoffs

Final Assembly

Finally place the panel over the project again then gently tighten down the jack, pot and switch nuts. You can now put the knobs on.

Turing Machine Final Panel Placement
Turing Machine Final Panel Placement

Congrats on your build! You are now ready for calibration and testing.

Turing Machine Final Build
Turing Machine Final Build

Calibration

Setup:

  • Set LENGTH switch to “8.”
  • Set big knob and SCALE knob to max, fully clockwise.
  • Patch a square wave from an oscillator into the CLOCK input.
  • Patch the OUT to the audio output of your Eurorack system.

Using a small Philips screwdriver, start by turning the trimmer (located just below the WRITE switch) fully clockwise.

Turn the trimmer counter-clockwise until you hear a stable, consistent tone; then turn the trimmer clockwise again until you hear the tone “break up” or “glitch.” Turn it counter-clockwise again in tiny increments until the glitching goes away. After each small adjustment, wait 10 seconds to make sure it doesn’t glitch again.

Once the trimmer is set, turn the big knob fully counter-clockwise; it should have a steady tone as well.

Lastly, check the NOISE jack. The output level of this jack is affected by the trimmer. If it is pretty quiet, make small adjustments to the trimmer until the noise has reached a sufficient volume. Double-check that you are still getting a stable, consistent tone as before. Adjust as necessary.

The module is now calibrated and ready to use!
